Product Specification Sheet
The Ewing Aerospace BlueLRS 2.4 GHz RX Module is a high-power radio receiver designed for professional UAS and long-range FPV systems. Utilizing blueLRS, our own privately maintained ELRS firmware fork, we can ensure optimum performance and maintain compatibility with NDAA compliant hardware. It offers wide voltage support, selectable packet rate, and a companion lua script for easy runtime access to settings.
📡 RF & Channel Specifications
| Specification | Details |
|---|
| Channels | 16 CH |
| Frequency Range | 2.4 GHz – 2.5 GHz |
| Power Output Level | 100 mW |
| Antenna Connector | MMCX |
⚡ Electrical Specifications
| Specification | Details |
|---|
| Input Voltage | 2.5 V – 16 V DC |
| Typical Current Draw | ~2.8 mA @ 3.3 V |
🧰 Mechanical & Physical
| Specification | Details |
|---|
| Weight | ~1 g |
| Dimensions | ~12 mm × 16.5 mm × 4.5 mm |
| RF Connector Type | MMCX |

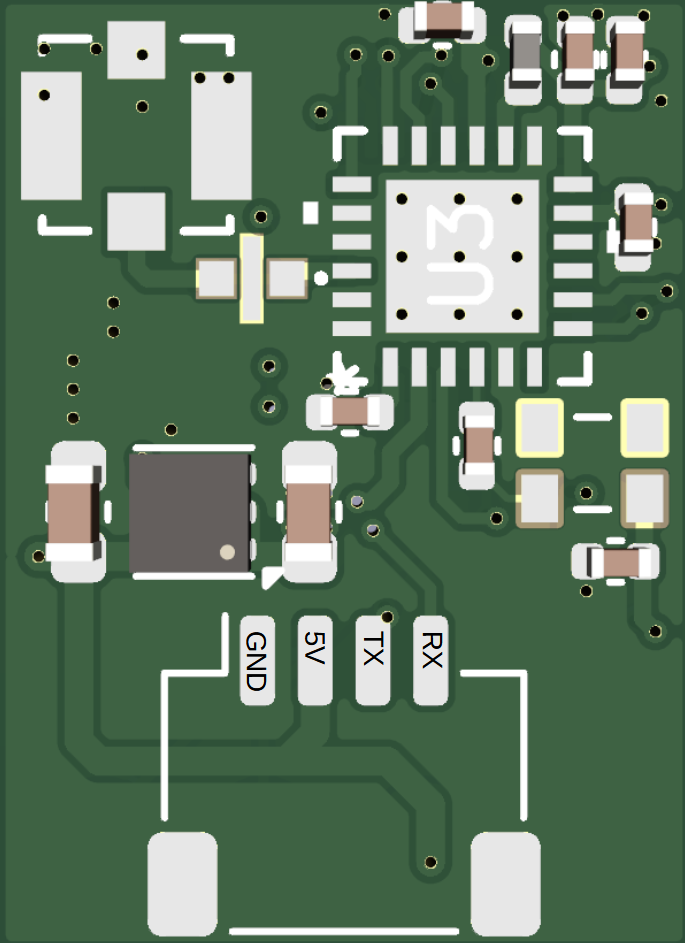

| Connector Type | 4-Pin JST |
🔧 Functional Features
| Feature | Description |
|---|
| Remote Configuration | Support via lua script |
| Thermal Design | Intended for active airflow during prolonged operation |
📦 Package Contents
| Item | Description |
|---|
| Radio Receiver | Ewing Aerospace BlueLRS 2.4 GHz RX Module |
| Power / Control Harness | Pre-terminated integration cable |
⚠️ Integration Notes
- Antenna is not included and must be selected to match frequency band and power level.
- Operation must comply with applicable RF regulations and authorization requirements.
Specifications subject to change as part of continuous improvement and validation testing.
